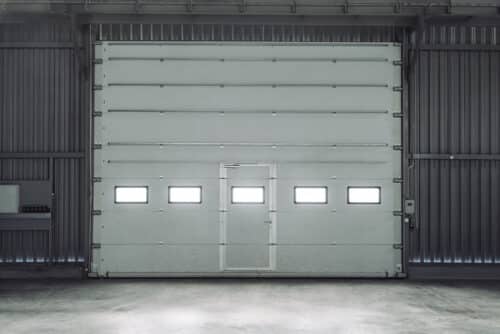

How Much Space Does an Overhead Door Actually Need? October 2, 2026 by Dan Hurth Leave a Comment Ask most people how much room an overhead system needs, and they’ll grab a tape measure and check the opening. That’s a good start. The trouble is that the parts that make the system move need room of their own, and a single beam or light fixture in the wrong place can rule out an option that seemed like a sure thing. It’s especially common in older buildings with low beams or warehouses with ductwork crisscrossing the ceiling. Before you talk to a garage door company in Orange County, it helps to understand which measurements matter. Below, we’ll walk through how headroom is measured and why the rest of the space deserves just as much attention. How much headroom does an overhead door require? There is no single headroom requirement that applies to every overhead system. The amount depends on the product, spring arrangement, track configuration, operating equipment, and conditions around the opening. What changes the required clearance? Different configurations follow different paths as they open, which affects how much room they need. Standard residential configurations For standard residential sectional systems, manufacturer guidance commonly calls for around 10 inches of headroom with extension springs and 12 inches with torsion springs. Low-headroom hardware is available for some restricted installations. These figures are useful reference points, but the actual product specifications still need to be compared with the measurements at the property. Commercial lift arrangements Commercial sectional products can use standard-lift, high-lift, vertical-lift, low-headroom, and other track arrangements. Each has its own clearance requirements. We can measure the available area, identify possible obstructions, and see which configurations will work before equipment is selected. There are several reasons to choose an overhead system, but getting those benefits depends on choosing a setup that suits the building and how the entrance will be used. What is garage door headroom? Headroom is the vertical distance between the top of the opening and the ceiling or floor joist above it. Beams, ducts, lighting, sprinklers, and other objects within that area can reduce the usable clearance. For sectional configurations, headroom is only one measurement that matters. The other measurements that affect the fit The space around the opening needs to be considered as a whole. Sideroom Sideroom is the usable area beside the opening where tracks and supporting hardware may be installed. An entrance can have suitable height but still lack enough room along one or both sides. Backroom Backroom is the depth extending from the opening into the building. Sectional tracks and some operating equipment can occupy this area when the system is open.There may be plenty of clearance directly above the entrance while lighting, storage, structural components, or other equipment farther inside conflicts with the proposed track path. Rolling configurations use the surrounding area differently, so their dimensions also need to be checked against the requirements of the specific product. A commercial property may have other entrances with completely different needs. Looking at folding and sliding systems in tight spaces can help when another access point has limited floor or wall area. Why does the available space matter when selecting a door? Available space affects how the system moves and where its components can be installed. Width and height alone do not provide enough information to make that decision. We typically look at: Clearance above the opening: Tracks, springs, brackets, or a coiling assembly need the specified amount of room. Usable area at each side: Guides and supporting hardware need suitable mounting space. Interior depth: Sectional tracks and some operating equipment extend farther into the building. Existing obstructions: Structural members, HVAC equipment, lighting, shelving, sprinklers, or electrical components can interfere with the layout. Why we check the complete site Powered operation can affect the required space as well. The operator needs to work with the chosen configuration and fit into the available area. For residential automatic systems, operator safety requirements also need to be considered as part of the installation. Before recommending a setup, we compare the site measurements with the product specifications and consider how the entrance will be used. This helps rule out options that do not suit the space before equipment is ordered. Other areas of the property may need a different type of access point. Understanding how metal and glass entries differ can help when pedestrian traffic, visibility, security, or storefront appearance becomes the priority. What’s the leading garage door company near me in Orange County? A few inches can rule a system in or out. That’s why we measure before we recommend anything. When you call Radford Doors & Gates, we’ll start by asking how you use the entrance, then talk through materials and operating options together. Our Mission Viejo office is just up the road from Mission San Juan Capistrano, and our team works with properties all over the region. We offer rolling steel, overhead trackless, high-speed, and warehouse systems, along with other specialized options. Reach out to talk through your project and find out what fits your space.
